Jinan Tindo International Co., Ltd. is one of the most credible manufacturers and suppliers of salad washing machine in China. Please feel free to buy high quality salad washing machine at competitive price from our factory. If you have any enquiry about quotation, please feel free to email us.

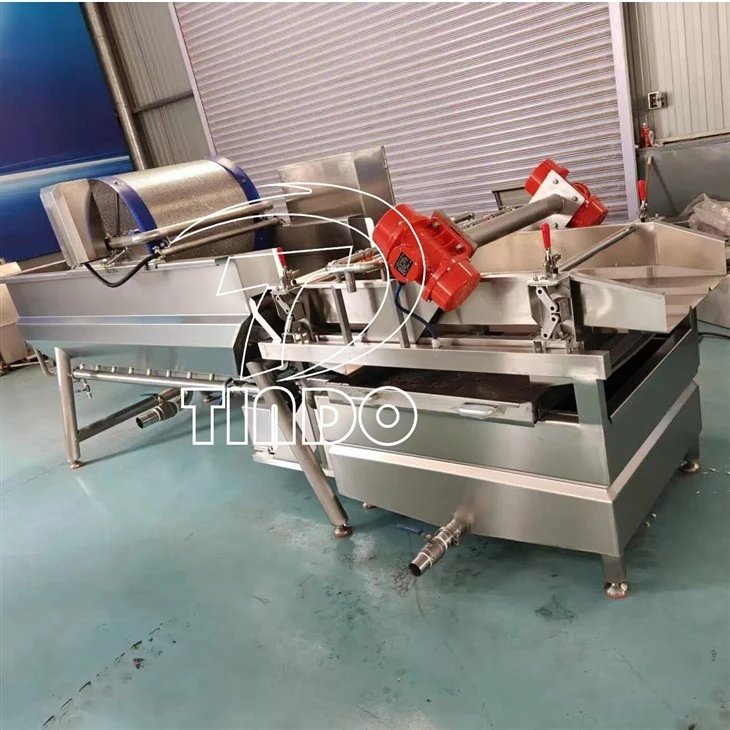

Salad Washing machine Description

The equipment is equipped with a bubble generating device, which keeps the materials in a tumbling state, effectively removing mud, dust, and surface pesticide residues. Advantages of the bubble cleaning + swirling flow vegetable washing machine: Based on traditional swirling flow cleaning, a bubble cleaning design is added. High-pressure air injection pipes are arranged at the bottom of the tank to eliminate the clumping phenomenon that occurs when washing uncut vegetables in traditional swirling flow vegetable washing machines. High-pressure bubbles can separate clumped vegetables, solving the drawback of pure swirling flow vegetable washing machines that can only clean cut materials. The combination of tumbling cleaning and bubble vibration cleaning provides double cleaning efficiency, easily handling whole vegetables, cut vegetables, or chopped vegetables.

Salad Washing machine data

Model	TDXZ-1500L
Capacity	500-1000 KG/H
Voltage	220V/380v
Power	4.9 KW
Dimension	4020×1710×1650mm
Weight	660 KG

Salad Washing Machine Operation

1. Structure: This equipment consists of the main tank, inner tank, sediment separation screen, vibration device, bubble generation device, and other main components.
2. Operating Procedures:
(1) Clean the water tank thoroughly and fill it with water; fill the main tank with clean water until water overflows from the overflow port.
(2) Start the motor to ensure the equipment is running correctly and in the right direction;
(3) Start the vortex pump to inject air into the water in the tank, causing the water to churn;
(4) Open the spray pipe valve to ensure the water is sprayed evenly;
(5) Check all operating parts to ensure normal operation before starting work.

Salad Washing machine Advantages

Roller device

The materials are flushed by the water flow from a high-pressure air pump and gradually move to the conveying roller and flotation device under the force of the water. Impurities are lifted out of the inner tank, filtered through a filter screen, and the water is recycled.

Secondary filtration device

The water circulation process includes a secondary filtration system to remove impurities, effectively maintaining the cleaning quality.

High pressure spray and vibration dewater device

The machine ends with high-pressure spraying to clean the material again. Vibratory dewatering is then used to remove large water droplets from the material surface.

Equipment Application

This salad washing machine multi-functional vortex cleaner uses a bubble water bath for cleaning and is suitable for cleaning fruits, vegetables (fresh, pickled, and mushrooms), aquatic products, and medicinal herbs. Customization is available to suit different production volumes.
