Jinan Tindo International Co., Ltd. is one of the most credible manufacturers and suppliers of flip type air drying machine in China. Please feel free to buy high quality flip type air drying machine at competitive price from our factory. If you have any enquiry about quotation, please feel free to email us.
Products Description

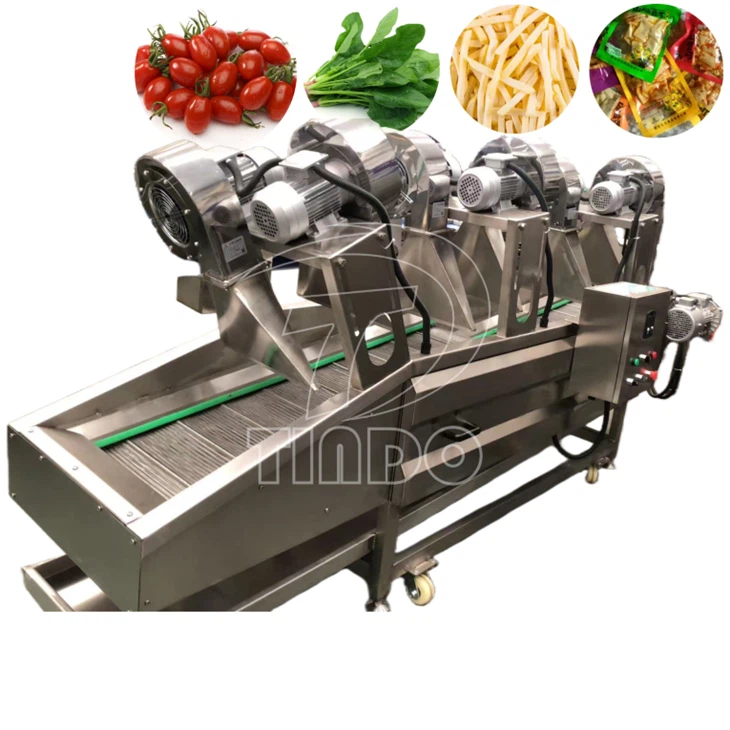

The Flip-Type Air Dryer is suitable for applications such as fried food processing, fruit and vegetable processing, and the air-drying of packaging bags. Utilizing a multi-tier belt conveyor system combined with a gentle flipping mechanism, it achieves highly efficient, 360-degree air-drying of products-leaving no blind spots-and rapidly removes surface water droplets and oil residues. The equipment operates entirely at ambient temperature, requiring no heating; while effectively removing moisture, it perfectly preserves the product's original color, shape, and quality. Energy-efficient and fully compliant with food hygiene standards, it serves as the ideal solution for surface drying treatments following washing and sterilization processes.
Technical Parameters
|
Capacity
|
Model
|
Dimension
|
Weight
|
Power
|
|
1000kg/h
|
CY-4000
|
4000*1200*1600mm
|
420kg
|
10.1kw
|
|
1500kg/h
|
CY-5000
|
5000*1200*1600mm
|
560kg
|
13.6kw
|
|
2000kg/h
|
CY-6000
|
6000*1200*1600mm
|
620kg
|
16.6kw
|
Products Features
1. The entire machine is constructed from 304-grade stainless steel; its length can be custom-designed to meet the client's specific production volume requirements.
2. Based on client needs, the number of air blowers can be increased, or the drying process can be segmented-for instance, by incorporating a hot air drying stage.
3. Suitable for washing a wide variety of materials, including fruits, vegetables, and bagged products.
4. The material conveying mechanism is customizable: options include mesh belts or chain plates.
5. The entire machine can be fully custom-designed to align with the client's specific requirements.
Advantages :

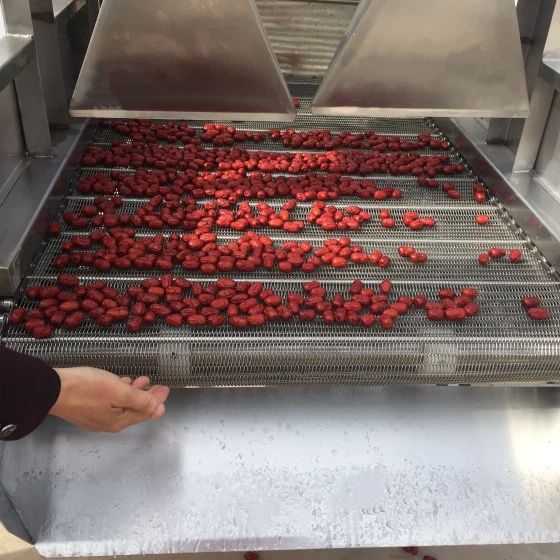

Dual-Row Knife-Edge Air Knife High-Pressure Air Drying
Featuring a specialized dual-row blade-style air outlet design, it utilizes physical principles to significantly boost the fan's airflow volume and pressure, ensuring excellent drying results, rapid operation, and high-efficiency performance.
Blower Height Adjustable
The fan height can be adjusted according to different materials, adapting to a wide range of production scenarios.
Stepped Design
The material conveying process incorporates a multi-stage tumbling design, followed by thorough water removal and air-drying-without any dead spots-using a high-pressure blower, resulting in superior performance.
Equipment Application
Widely utilized across industries such as food, beverages, condiments, and dairy products; typical applications include water removal from soft packaging following sterilization, surface water removal from fruits and vegetables after washing, and cooling and surface oil removal following frying.
Video of Drying Vegetable
tINDO hONOR
Honor and qualification
Official certification, professional after-sales service.
CE CERTIFICATE
mIHAS AWARD
pATENT CERTIFICATE
CE CERTIFICATE
CE CERTIFICATE
Everything You Need to Know
How can material flipping be achieved?
The mesh belt of the air drying machine is designed in a stepped configuration, causing the materials to tumble as they descend.
What is the discharge method??
Automatic discharge.
Is this machine full of SUS304 materials?
Yes, it is made of 304 stainless steel which is the international requirement of food grade.
What is the lead time and the payment terms?
The lead time of this machine is 25-30 days according to the production arrangements.
And the payment term is 30% TT in advance, 70% TT paid before shipment. And LC is acceptable.
